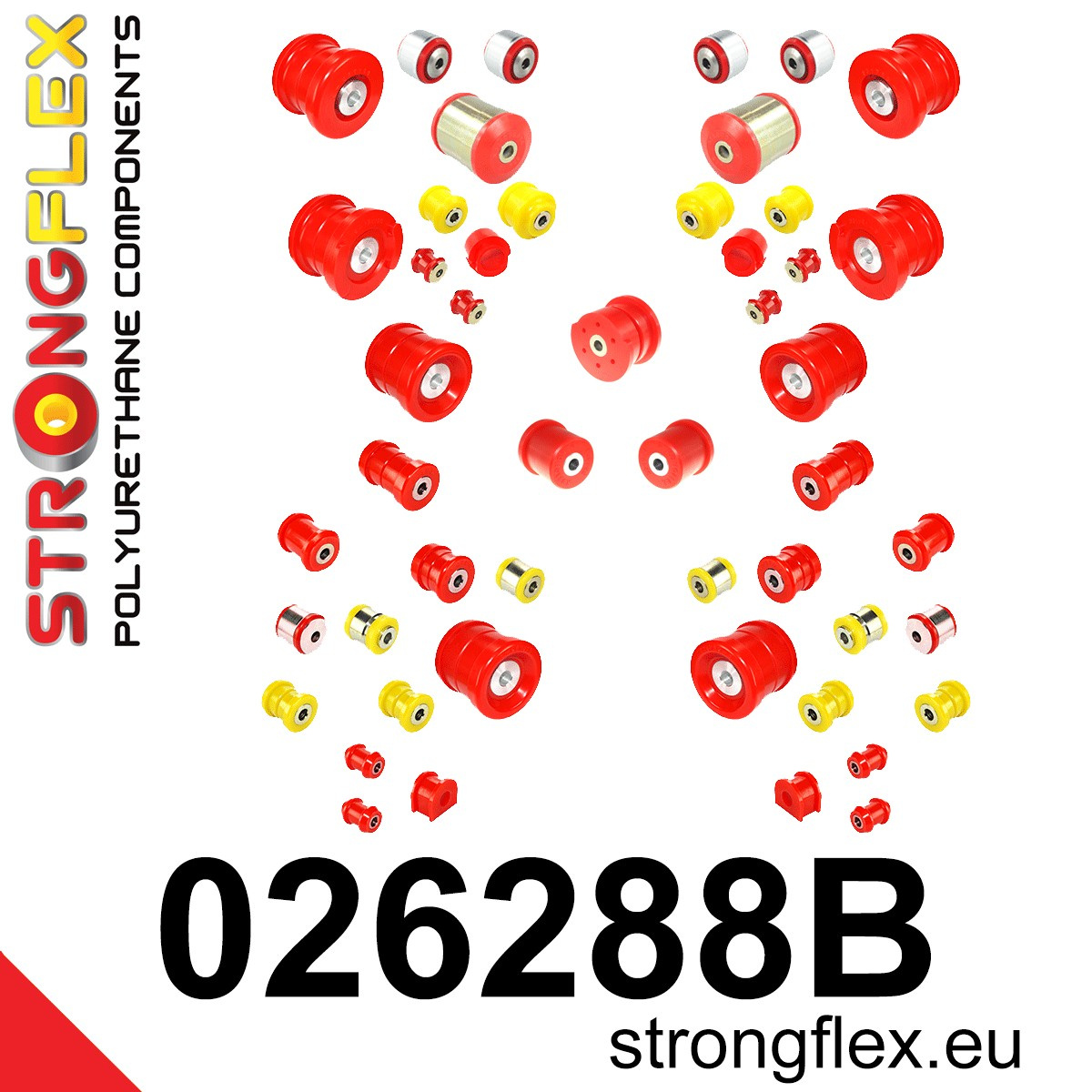

Reference: 026288B

Product name: Full suspension bush kit

Fits to:

• Audi A6 C6 (04-11) Quattro & Allroad / S6

Include:

• 2x 021285B: Front anti roll bar bush
• 4x 021772B: Front anti roll bar link bush
• 2x 021773A: Front lower arm inner bush SPORT
• 2x 021774A: Front lower arm outer bush SPORT
• 2x 021258B: Front lower wishbone - rear bush
• 4x 021259B: Front upper wishbone bush
• 2x 021780B: Front subframe - front bush
• 2x 021781B: Front subframe - rear bush
• 4x 021763A: Rear upper arm bush SPORT
• 2x 021764B: Rear lower arm front bush
• 2x 021765B: Rear lower arm rear bush
• 2x 021766B: Rear tie bar to hub bush
• 2x 021767B: Rear lower arm outer bush

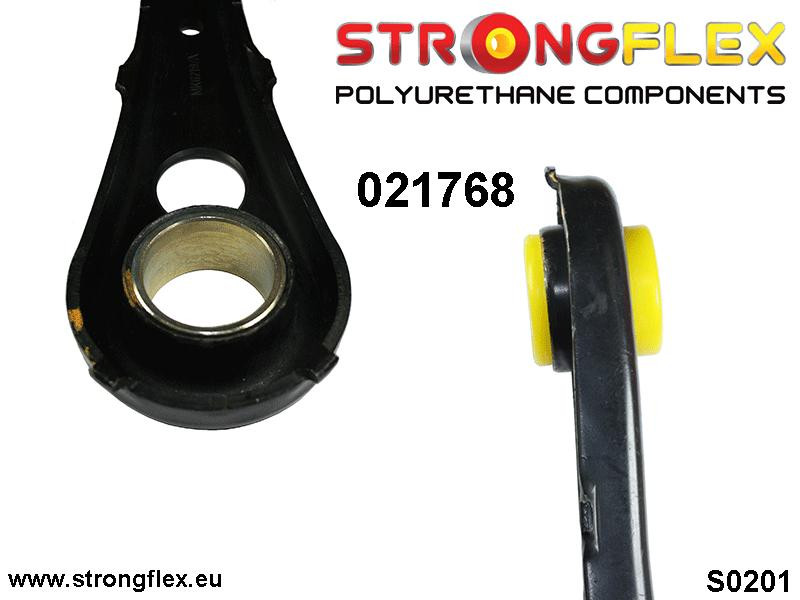

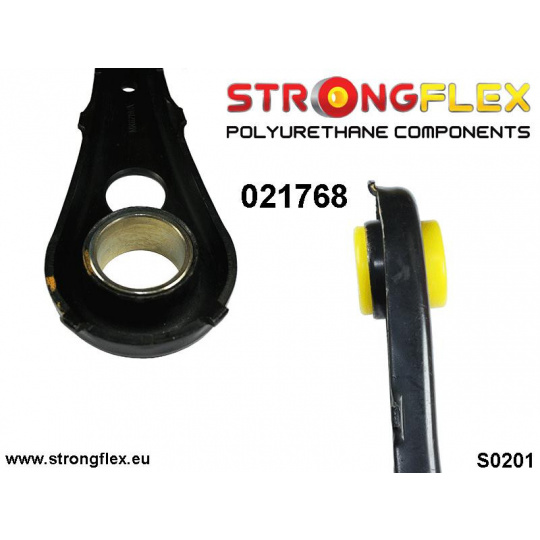

• 2x 021768A: Rear toe adjuster inner bush SPORT

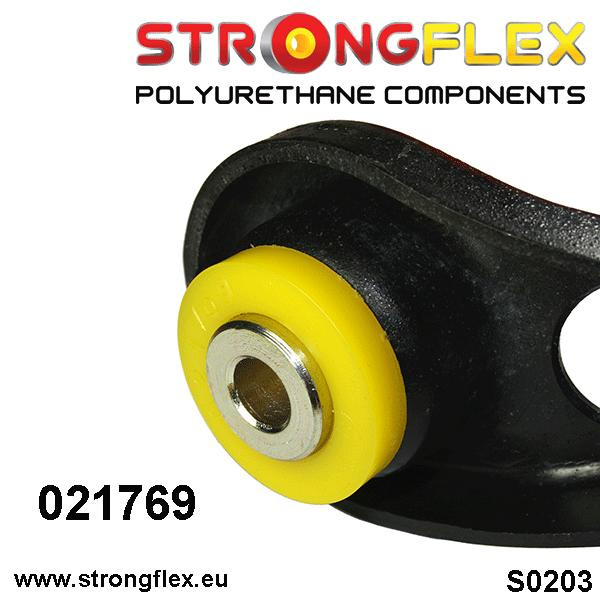

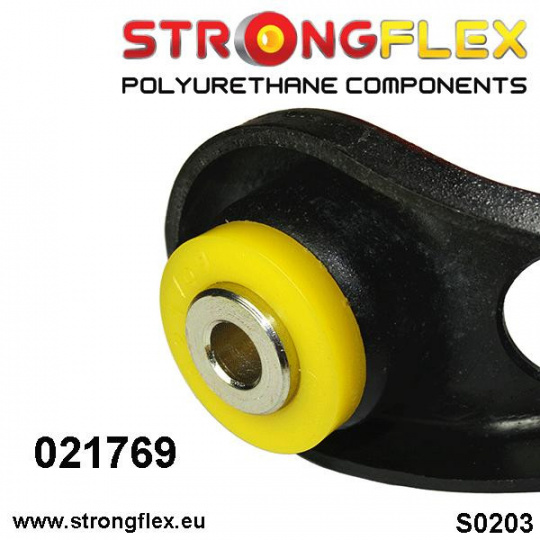

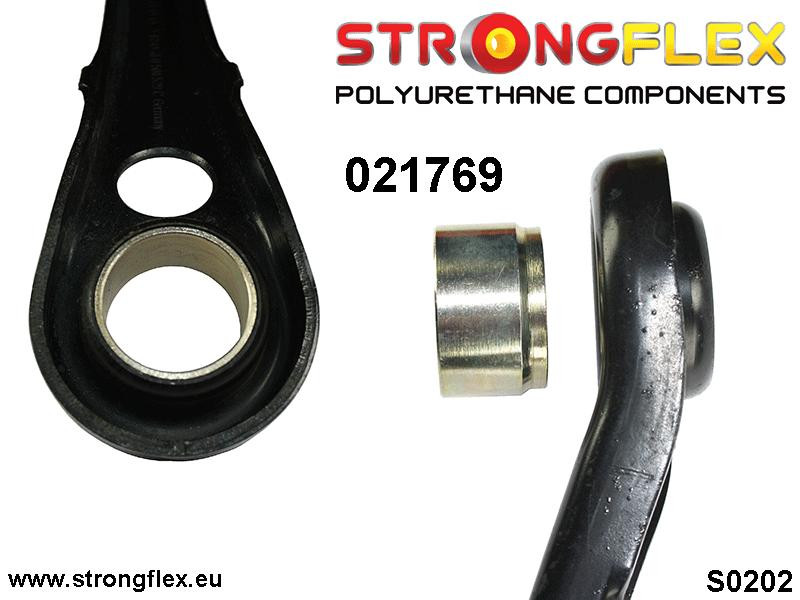

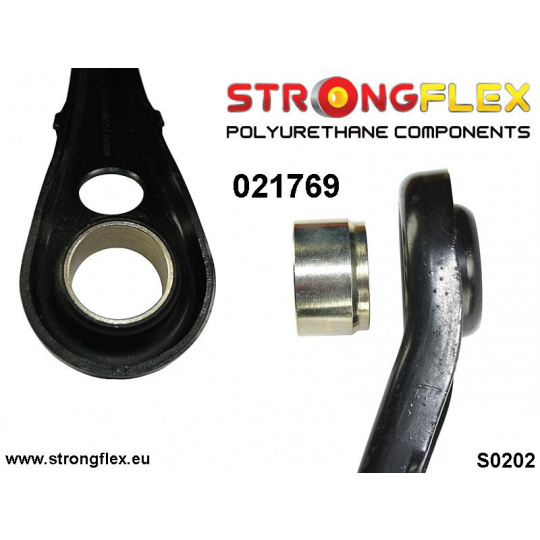

• 2x 021769A: Rear toe adjuster outer bush SPORT


• 2/4x 021770B: Rear anti roll bar link bush


• 2x 021771B: Rear anti roll bar bush
• 2x 021782B: Rear subframe - front bush
• 2x 021783B: Rear subframe - rear bush
• 1x 021970B: Rear diff mount - front bush
• 2x 021971B: Rear diff mount - rear bush

Diagrams:

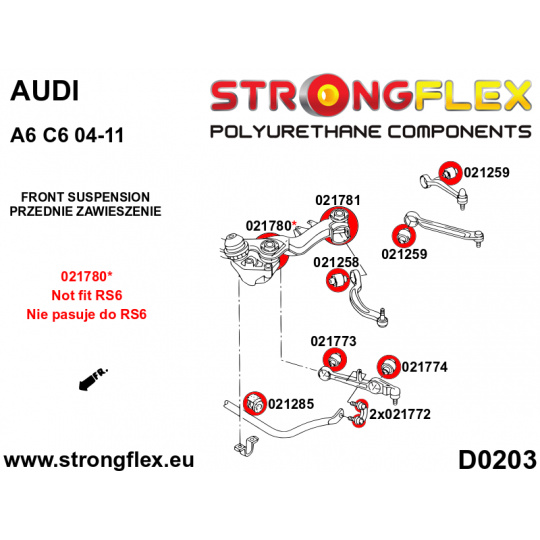

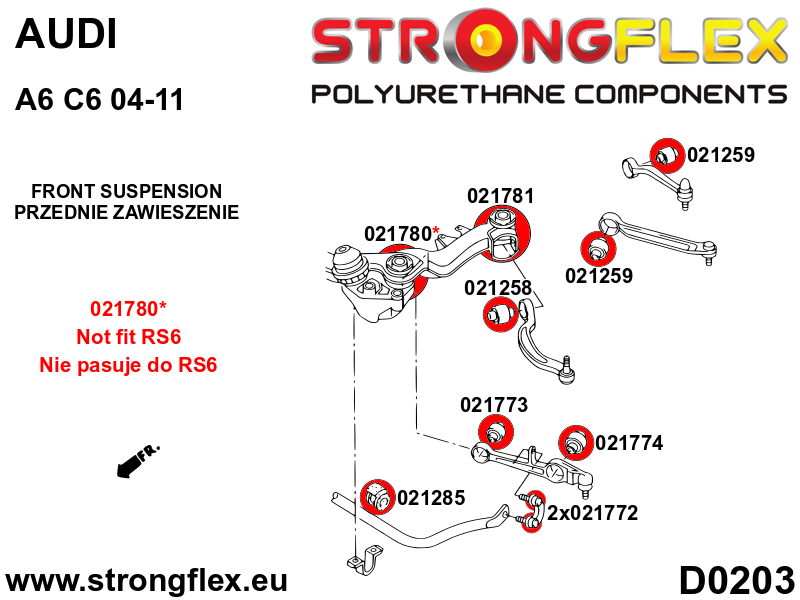

• D0203

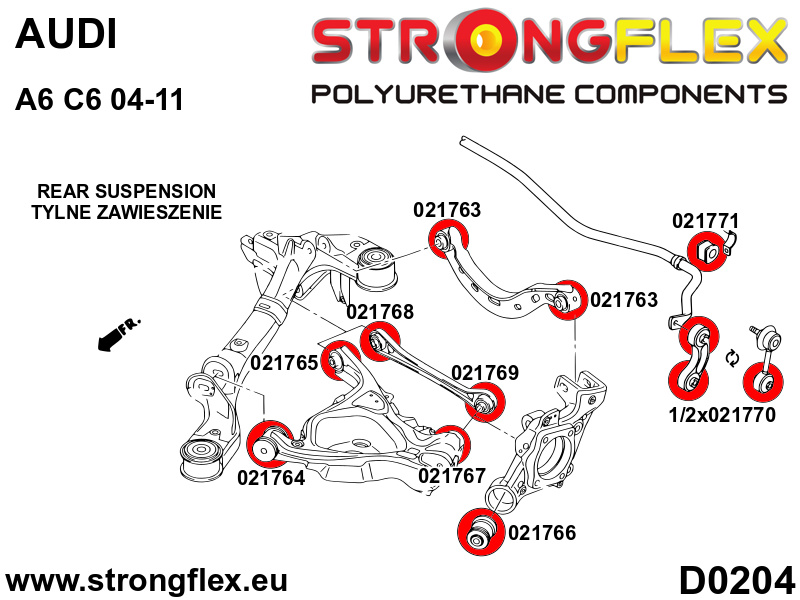

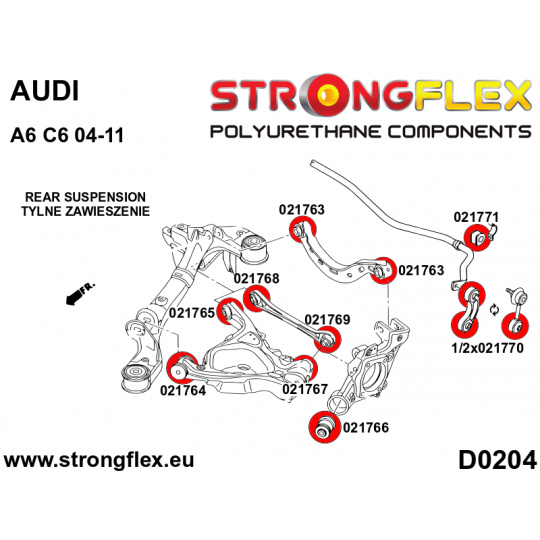

• D0204

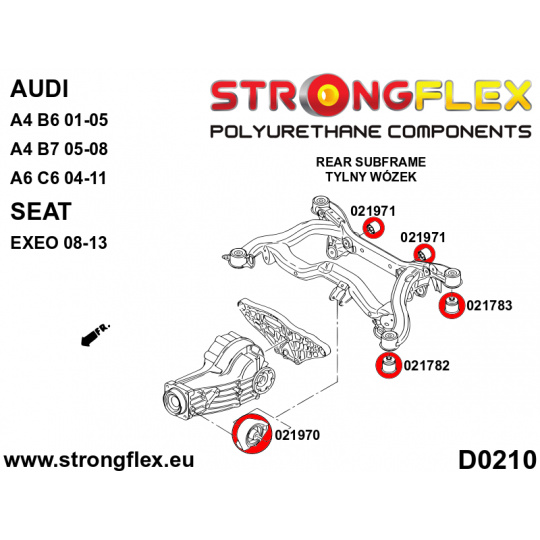

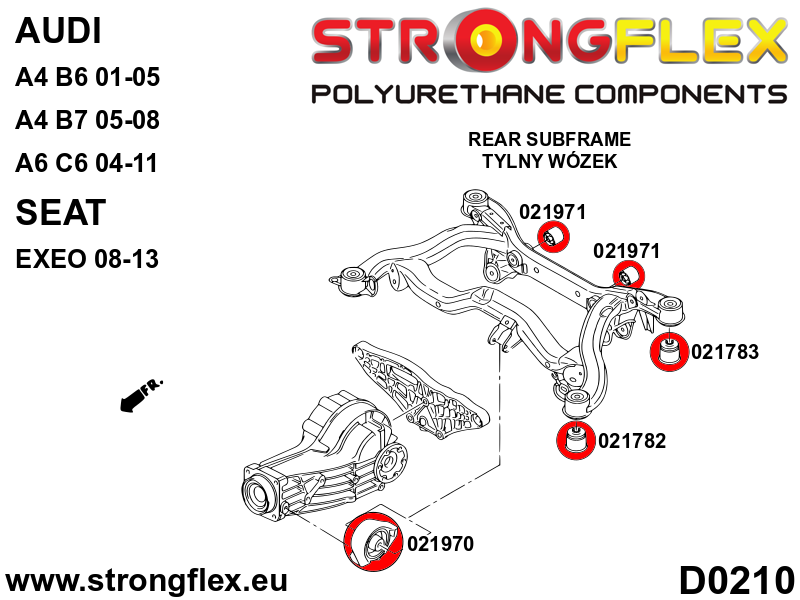

• D0210

Notes

• Rear Stabilizer Link 021770:
  Plastic Link - Choose 4pcs.
  Steel Link with Pin - Choose 2pcs.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 47/49

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
