Reference: 086039B

Product name: Rear suspension bush kit

Fits to:

• Honda Civic VI (95-00) UK MA / MB / MC


• MG ZS / 5 (95-07)


• Rover 400 II (95-00) HH-R
• Rover 45 (99-05)

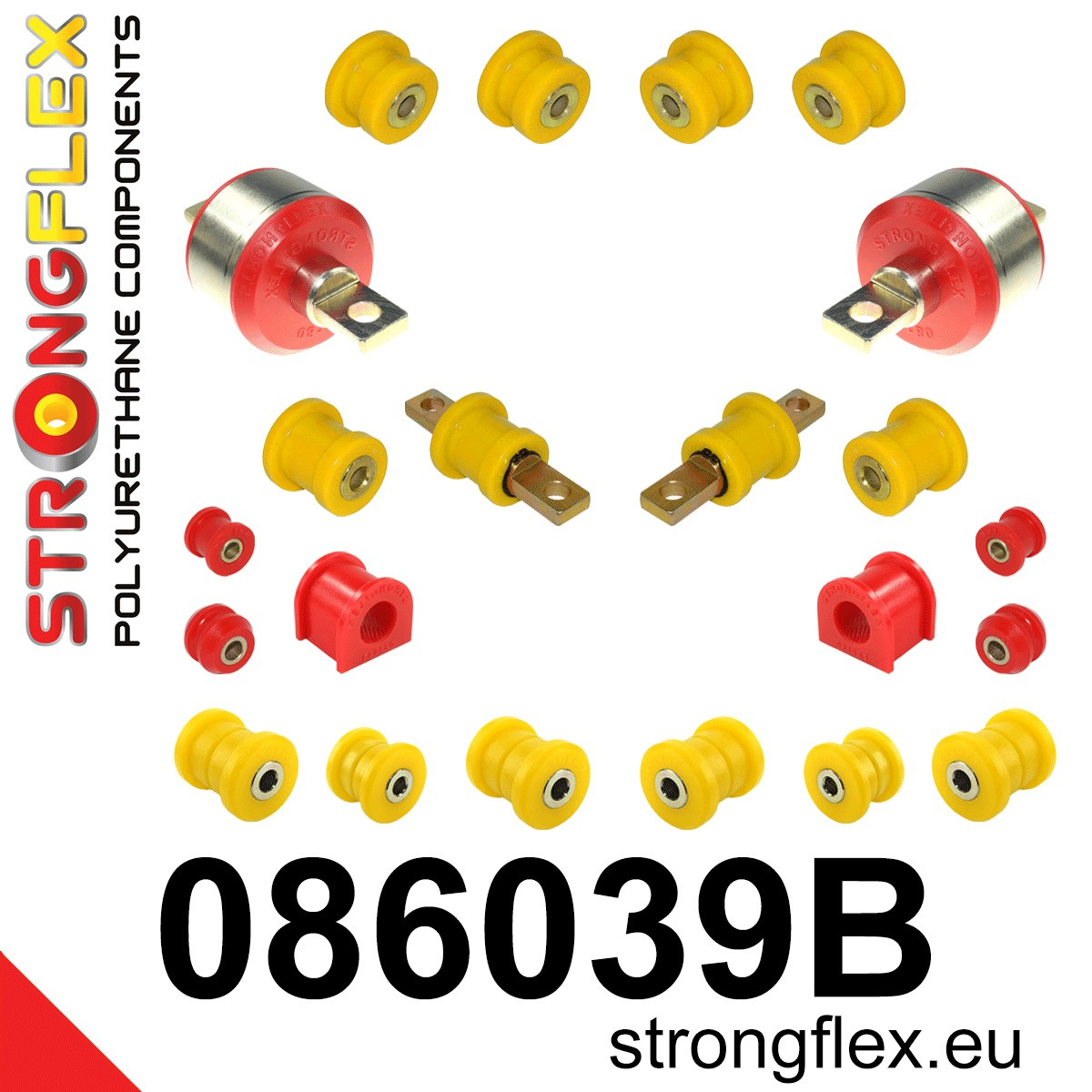

Include:

• 2x 081103A: Rear upper outer link/hub bush SPORT
• 2x 081104A: Rear trailing arm mount bush SPORT
• 2x 081105B: Rear trailing arm mount bush
• 4x 081107A: Outer arm to hub bush inner track arm bush 35mm SPORT
• 4x 081108A: Rear toe link arm bush SPORT
• 2x 081155A: Rear lower shock mounting bush version 5d SPORT
• 2x 081443B: Rear anti roll bar bush


• 0/2x 081196B: Rear anti roll bar bush link
• 0/2x 081521B: Rear anti roll bar bush link

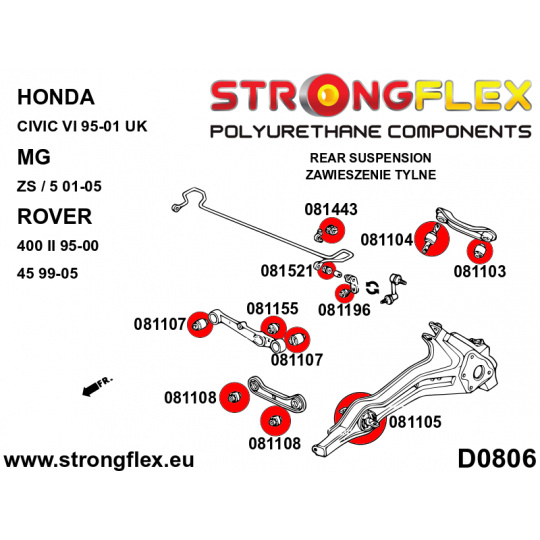

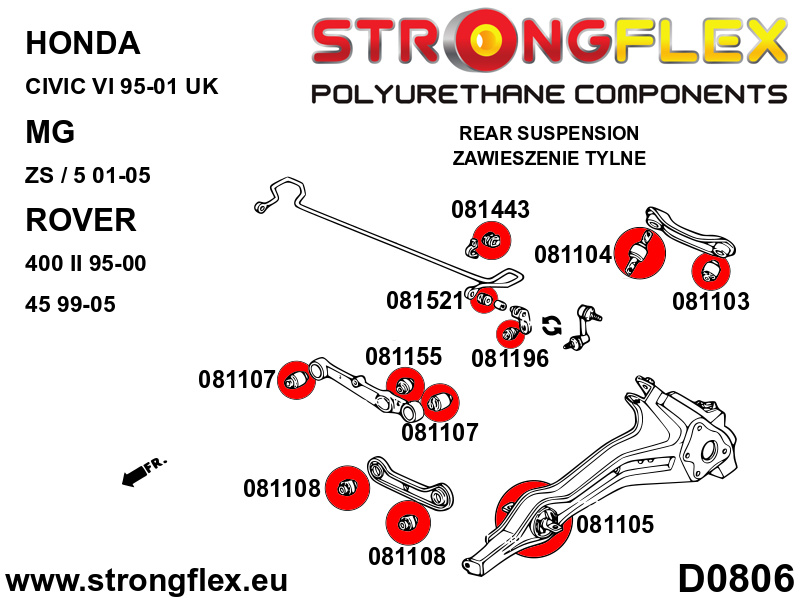

Diagrams:

• D0806

Notes

• Depending on the type of rear stabilizer link, select:
  0 x 081196, 0 x 081521 for a ball link or 2 x 081196, 2x 081521 for a link with rubber bushes.


• Bushings 081105B can be purchased as a polyurethane "insert", without metal parts (inner and outer metal sleeve).

  To mount the "insert", an external metal ring and an inner metal sleeve from the old original rubber bush are needed.
  Metal parts should be burned or cut. The original internal metal bushing recovered must have a diameter of 30mm, check this value before selecting the "insert" option.

  The old bush should be burnt or cut out. Bushing 081105B is not a replacement for the original bushing, the suspension will be stiffened.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 18/22

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
