Reference: 086244B

Product name: Full suspension bush kit

Fits to:

• Honda CR-V I (95-02) RD1 / RD2 / RD3

Include:

• 2x 081096B: Front lower rear bush
• 2x 081271A: Front lower wishbone inner bush SPORT
• 2x 081272A: Front lower wishbone outer bush SPORT
• 2x 081097B: Front anti roll bar bush
• 4x 081348B: Front upper arm bush


• 2x 081103A: Rear upper outer link/hub bush SPORT
• 2x 081104A: Rear trailing arm mount bush SPORT
• 2x 081105B: Rear trailing arm mount bush*
• 4x 081108A: Rear toe link arm bush SPORT
• 2x 081443B: Rear anti roll bar bush
• 4x 081851A: Rear lower arm bush SPORT


• 2x 081852B: Rear diff mount - front bush


• 4x 081746A: Steering rack bush SPORT
• 1x 081809B: Steering clamp bush

Diagrams:

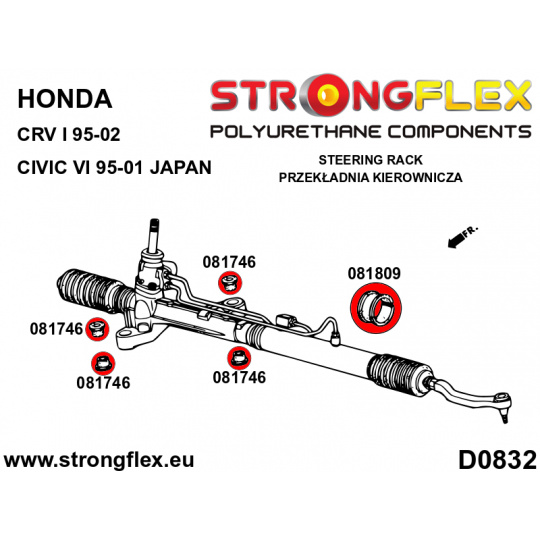

• D0832
• D0841

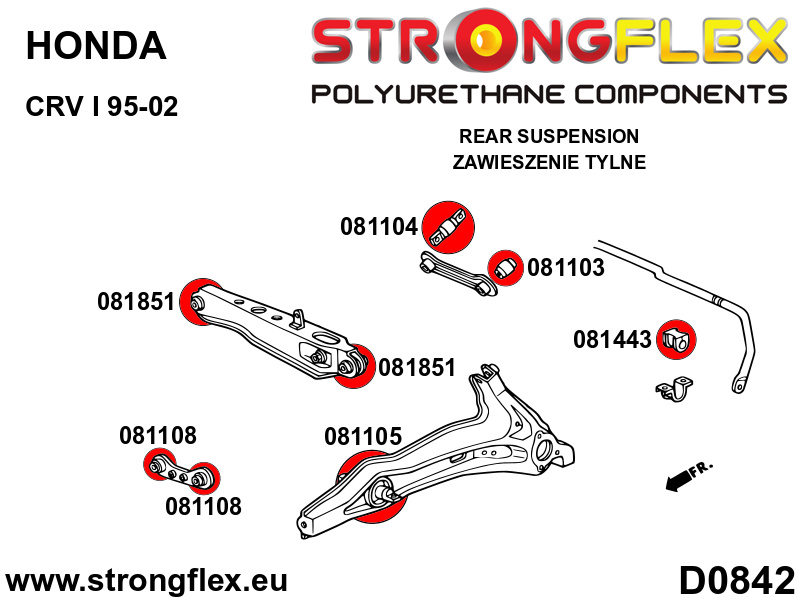

• D0842

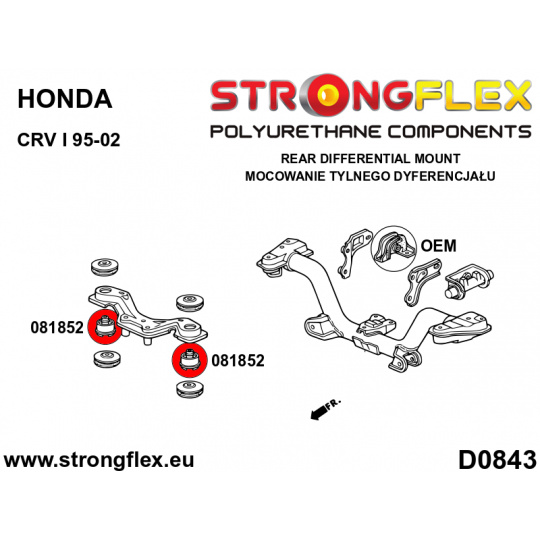

• D0843

NOTES!

Bushings 081105B can be purchased as a polyurethane "insert", without metal parts (inner and outer metal sleeve).

To mount the "insert", an external metal ring and an inner metal sleeve from the old original rubber bush are needed.
Metal parts should be burned or cut. The original internal metal bushing recovered must have a diameter of 30mm, check this value before selecting the "insert" option.

The old bush should be burnt or cut out. Bushing 081105B is not a replacement for the original bushing, the suspension will be stiffened.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 35

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
