Reference: 086250B

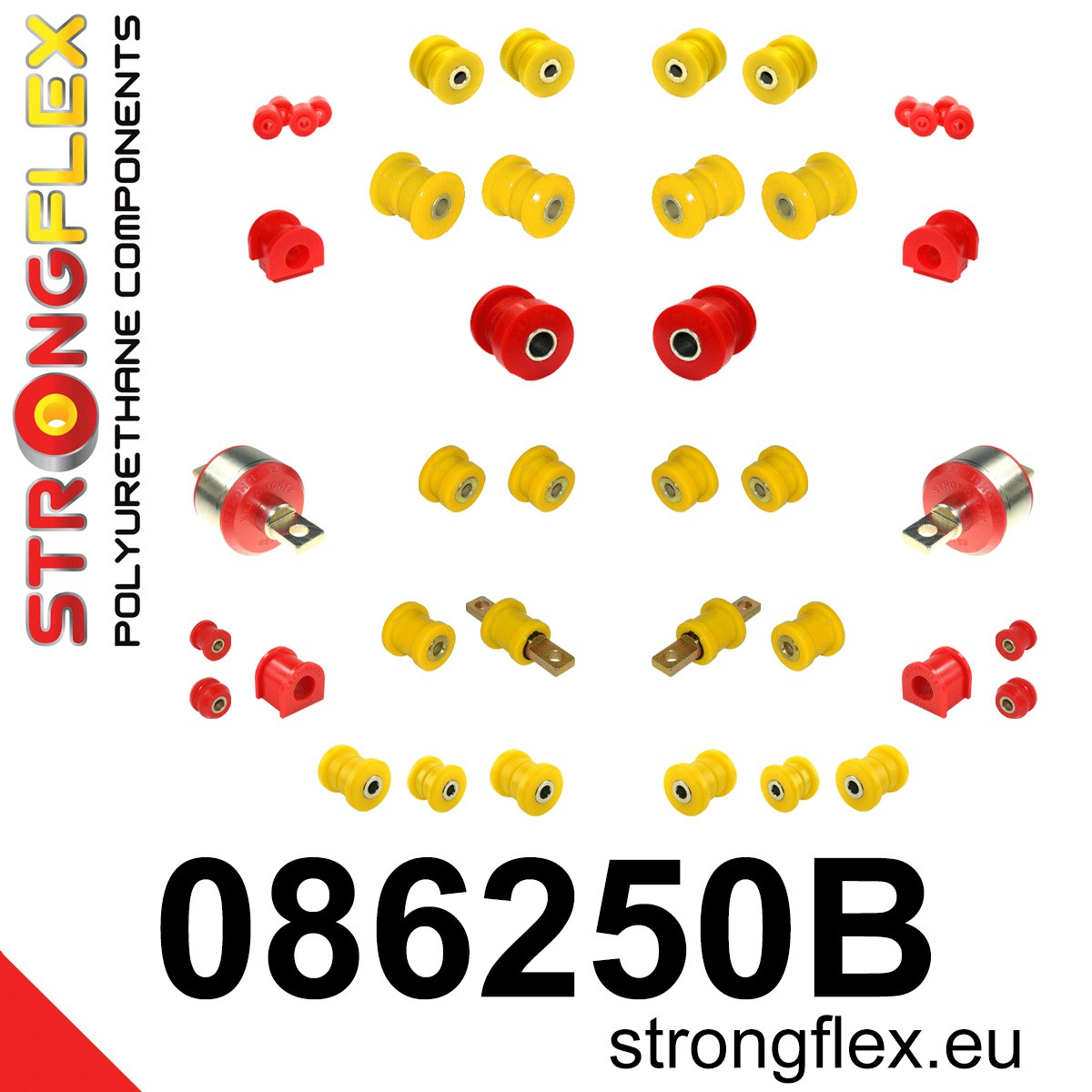

Product name: Full suspension bush kit

Fits to:

• Honda Civic VI (95-00) UK MA / MB / MC


• MG ZS / 5 (95-07)


• Rover 400 II (95-00) HH-R
• Rover 45 (99-05)

Include:

• 2x 081094A: Front wishbone - outer bush SPORT
• 2x 081095A: Front wishbone - inner bush SPORT
• 2x 081097B: Front anti roll bar bush
• 4x 081100A: Front upper wishbone bush SPORT
• 8x 081109B: Front eye bolt mounting bush
• 2x 081118B: Front lower wishbone rear bush


• 2x 081103A: Rear upper outer link/hub bush SPORT
• 2x 081104A: Rear trailing arm mount bush SPORT
• 2x 081105B: Rear trailing arm mount bush
• 4x 081107A: Outer arm to hub bush inner track arm bush 35mm SPORT
• 4x 081108A: Rear toe link arm bush SPORT
• 2x 081155A: Rear lower shock mounting bush version 5d SPORT
• 2x 081443B: Rear anti roll bar bush


• 0/2x 081196B: Rear anti roll bar bush link
• 0/2x 081521B: Rear anti roll bar bush link

Diagrams:

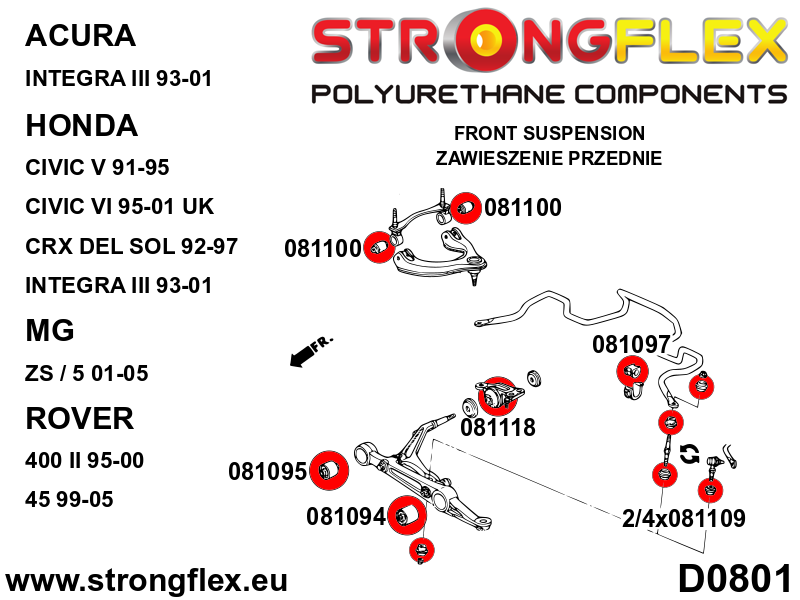

• D0801

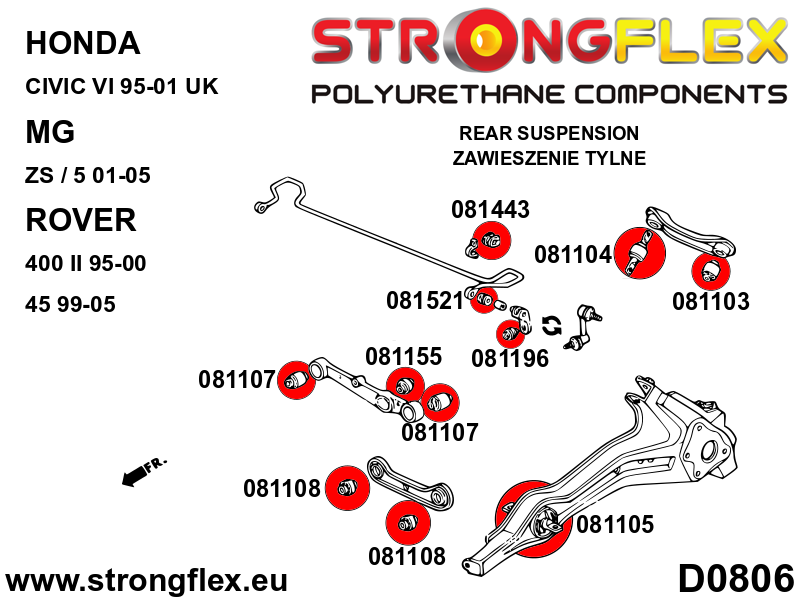

• D0806

Notes

• Depending on the type of rear stabilizer link, select:
  0 x 081196, 0 x 081521 for a ball link or 2 x 081196, 2x 081521 for a link with rubber bushes.


• Bushings 081105B can be purchased as a polyurethane "insert", without metal parts (inner and outer metal sleeve).

  To mount the "insert", an external metal ring and an inner metal sleeve from the old original rubber bush are needed.
  Metal parts should be burned or cut. The original internal metal bushing recovered must have a diameter of 30mm, check this value before selecting the "insert" option.

  The old bush should be burnt or cut out. Bushing 081105B is not a replacement for the original bushing, the suspension will be stiffened.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 38/42

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
