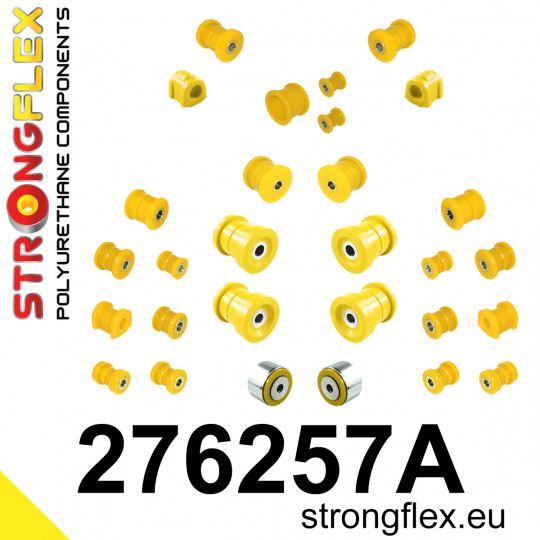

Reference: 276257A

Product name: Full suspension polyurethane bush kit SPORT

Fits to:

• Subaru Levorg (14-20) VM
• Subaru WRX STI (14-22) VA

Include:

• 2x 271529A: Front arm front bush SPORT
• 2x 271922A: Front anti roll bar bush SPORT


• 2x 271698A: Rear trailing arm front bush SPORT
• 2x 271611A: Rear trailing arm rear bush SPORT
• 2x 271612A: Rear toe adjuster inner bush SPORT
• 2x 271613A: Rear lower track control inner bush SPORT
• 2x 271614A: Rear upper arm front bush SPORT
• 2x 271615A: Rear upper arm rear bush SPORT
• 2x 271616A: Rear anti roll bar bush SPORT


• 2x 271541A: Rear diff front mounting bush SPORT
• 2x 271923A: Rear subframe – front bush SPORT
• 2x 271924A: Rear subframe – rear bush SPORT
• 2x 271925A: Rear differential – rear bush SPORT


• 0/1x 271620A: Steering rack mount bush SPORT
• 0/2x 271621A: Steering rack mount bush SPORT

Diagrams:

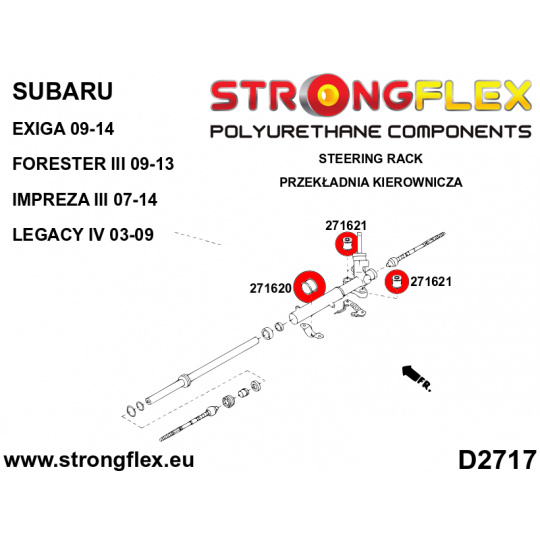

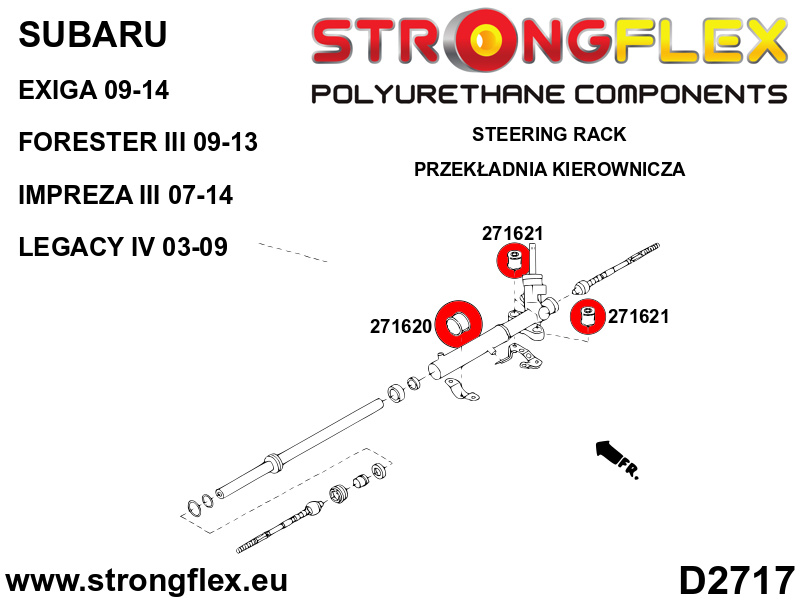

• D2717

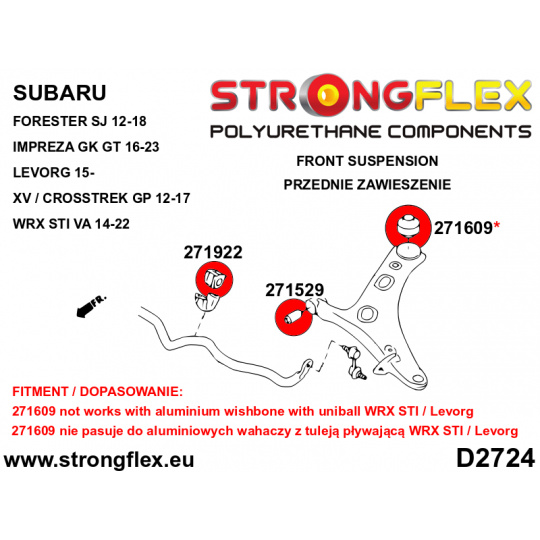

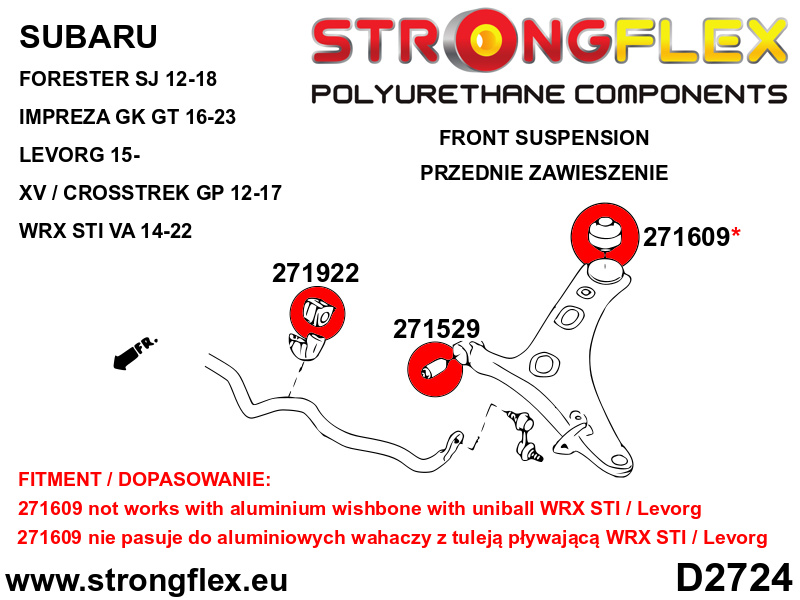

• D2724

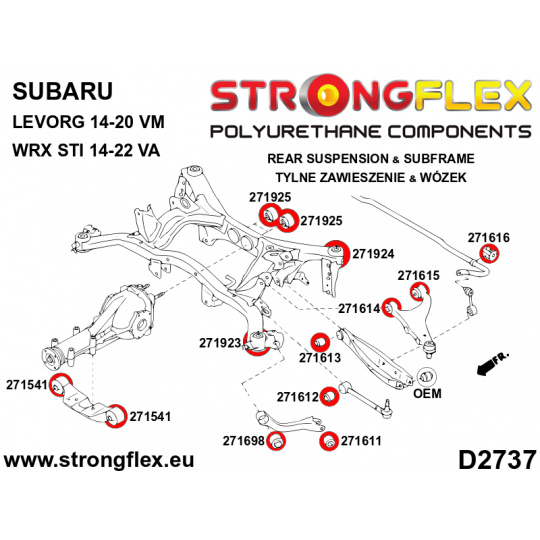

• D2737

Notes

• Steering gear bushings:
  Bushings 271620 and 271621 fit hydraulic steering gear only. They do not fit electric steering gear.


• For bushes 271923 and 271924:
  During assembly, original metal washers must be used between the polyurethane bushes and the chassis.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 26/29

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
